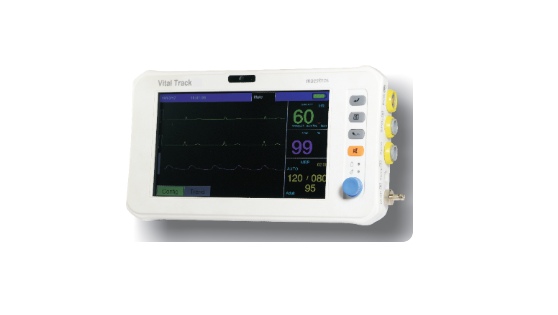

Vital Track 10

  Home   |   Vital Track 10

Vital Track 10

Vital Track 10

Enquire Now Download Brochure
Category: Patient monitor
* Basic 5 parameters :- ECG, SpO2, NIBP,Respiration & Temperature
* 7” TFT display with encoder
* 3 Channel configurable waveform display
* 96 Hours trend for SpO2 /HR
* Trend of 100 NIBP readings
* Inbuilt battery operation
* Battery Backup of 3 - 4 Hours
* Light weight , compact & portable

Additional information

Technical Specification :-

              PARAMETER           SPECIFICATION              PARAMETER          SPECIFICATION
ECG     DISPLAY
Electrode 12 Leads   Size 7 inch Diagonal
Display 2 waveforms with HR   Resolution 800 x 480 dots
Heart rate accuracy ± 2 bpm   No. of Channels 3 Channels
Leads off Detection Yes   Sweep Speed 12.5 / 25 / 50 mm/sec
      Gain 0.5, 1, 1.5, 2


SpO2     BATTERY
Display Pulse rate and % of
oxygen saturation		   Type 7.4V/3300 mAh Li-polymer
SpO2 range 0 - 100 %   Backup 3-4 hrs
SpO2 accuracy ± 2 for 70 - 100 % and
± 3 for 40 - 70 %
Pulse rate range 20 - 250 BPM
Pulse rate accuracy ± 3 BPM


NIBP     Operating Condition
Method Oscillometric measurement   Temperature 15 - 40 C
Display Systolic, Mean, Diastolic   Pressure 50kPa to 160kPa
Operation modes Auto, Manual, Stat   Humidity Up to 90%
Non-condensing
Interval 2 - 120 minutes
Range 0 - 300 mmHg
Pressure accuracy ± 3-5 mmHg


RESPIRATION     Storage Condition
Technique Impendance Method   Temperature 10 - 50 C
Leads used
for calculation		 RA-LL   Pressure 50kPa to 160kPa
Range 4 to 150 bpm   Humidity Up to 90%
Non-condensing
Accuracy + 2 bpm
Apanea Alarm 10 - 90 Seconds


Temperature Measurement     GENERAL
Range 14 to 42 Degree   Power 100 - 240 V / 50 Hz < 24 W
Accuracy + 0.1 C   Dimensions 232(L) x 124(W) x 41(H) mm
Unit - C / F   Weight 750 gm
