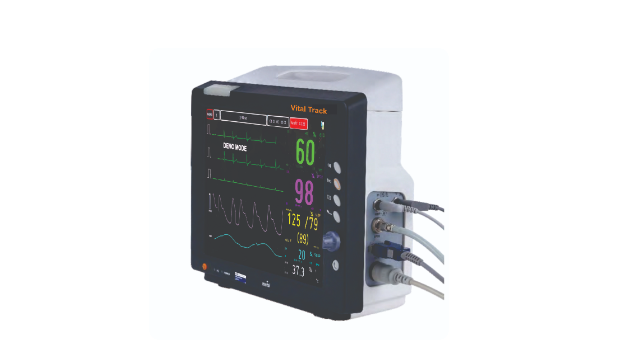

VITAL TRACK 12
Features
12.1” Color LCD with multichannel waveform display.
Light Weight, Easy to carry, suitable for ambulance center
Easy connecting with central monitoring system
via Ethernet / Wireless
200 Hours Data Storage
Simple & Easy operation
Suitable for adult, pediatrics and neonates
Standard parameters : 3/5/12 Lead ECG, SPO2, Nibp, 2-Temp,
Optional parameters:- EtCo2, 2 IBP
Thermal Recorder & wall installation
Controlled by both knob and touch screen.
12.1” Color LCD with multichannel waveform display.
Light Weight, Easy to carry, suitable for ambulance center
Easy connecting with central monitoring system
via Ethernet / Wireless
200 Hours Data Storage
Simple & Easy operation
Suitable for adult, pediatrics and neonates
Standard parameters : 3/5/12 Lead ECG, SPO2, Nibp, 2-Temp,
Optional parameters:- EtCo2, 2 IBP
Thermal Recorder & wall installation
Controlled by both knob and touch screen.
Additional information
Technical Specifications| ECG | Heart (Pulse) Rate | |||
| Electrode | 3/ 5/12 Leads | Source | User Selectable : Smart, ECG, | |
| Numeric Data Display | 6 lead ECG with HR | Plenth , Nibp | ||
| Heart Rate,VPC rate (per min.), | Range | Adult 15-300 bpm | ||
| ST Level, respiration rate, | Pediatric 15 - 350 bpm | |||
| Pulse rate sync mark, | Accuracy | + 1 bpm or + 1 % | ||
| respiratory sync mark | ||||
| NIBP (Systolic,Diastolic,MAP), | IBP (Optional) | |||
| SpO2 (Nellcor), Pulse rate, | Channels | 2 Nos | ||
| Temperature, Heart rate sync mark | Pressure | ART , PA , CVP , RAP , LAP | ||
| Lead | I,II,III,aVR, aVL, aVF, V (5 Lead) | ICP , P1 , P2 | ||
| I,II,III,aVR, aVL, aVF, V1-V6 (12 Lead) | Range | 0 - 300 , 6 - 120 , 10 - 300 mmHg | ||
| I,II or III (3 Lead) | Accuracy | + 1 mmHg or + 2% | ||
| Gain Selection | x1/4, x1/2, x1 and x2 | |||
| Frequency Response | Diagnostic : 0.05 to 90 Hz | Environment | ||
| Monitor : 0.5 to 35 Hz | Operating Temperature | (10 - 40 C) | ||
| Surgery : 1-15 Hz | Storage Temperature | (-5 - 50 C) | ||
| Calibration Signal | 1(mV p-p), Accuracy: +5% | Humidity | 15% to 90% | |
| Analysis | ST Segment & Arrhythmia Detection | |||
| Display Channel | 6 Channels | Trends | ||
| Sweep Speed | 6.25,12.5,25 or 50 mm/s | Memory | 200 Hr at 30 seconds intervals for | |
| a NIBP reading every 5 minutes | ||||
| Pulse Oximetry (Nellcor) | Display | Tabular, graphical | ||
| Range | 0 to 100% | |||
| Resolution | 1% | General | ||
| Accuracy | 70% to 99% range +1% | Dimensions | 320 (L) x 280 (B) x 135 (T) mm | |
| 40 to 69% range + 1% | Weight | 3.5 Kg | ||
| Method | Dual wavelength LED | Power | AC 100-240 V , 50/60 Hz | |
| Power Consumption | 35 W | |||
| Nibp | Battery | 14.8 V / 2200 Mah Li-Ion | ||
| Technique | Oscillometric during inflation | Recharge Time | 4.5 hours | |
| Range | Adult : 0-300 mm Hg | Operating Time | > 2 Hours typical | |
| Pediatric: 0 - 250 mm Hg | Alarm Silence | 120 seconds | ||
| Neonate : 0-135 mm Hg | Alram Type | 3 Level adjustable Audio-visual alarms | ||
| Measurement Cycle | <40 sec, typical | for each parameter, Sensor/Cuff | ||
| Cycles (Selectable) | 2,3,5,10,15,30 min1,2,4 hr | disconnect, Low battery | ||
| Max. allowable cuff pressure | Adult : 297 +3 mm Hg | Electrical Safety | ESU , Defibrillator protection | |
| Pediatric : 240 +3 mm Hg | Connectivity | WiFi/ USB/ Ethernet port/ LAN | ||
| Neonate : 147 +3 mm Hg | ||||
| Resolution | 1 mm Hg | EtCo 2 (Optional) | ||
| Transducer Accuracy | + 2 mm Hg or +2% of reading | Transducer Type | Side stream CO2 sensor | |
| Modes | Auto, Manual & STAT | Range | 0-150 mm Hg | |
| Resolution | 0.1 mm Hg | |||
| Temperature ( Dual Channel) | Accuracy | 0-40mmHg +/-2mm | ||
| Range, Accuracy | 0 - 50 C ; + 1% | 41-70 mmHg +/-5% of reading | ||
| Display Resolution | +0.1 C | 71-100 mmHg +/-8% of reading | ||
| Probe | YSI 400 AND YSI 700 Series | 101-150 mmHg +/-10% of reading | ||
| Probe Gradation | 1/10 Degree | |||
| Respiration Rate | ||||
| Method | Impedance Pneumography | |||
| Rate | Adult : 0 ~ 120 rpm | |||
| Neo / Ped 0~ 150 rpm | ||||
| Threshold Control | Yes | |||
| Resolution | 1 rpm | |||
| Accuracy | + 2 breath / min |
